26 11 052 Replacing flexible disc for rear propeller shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove EXHAUST SYSTEM .

NOTE: To protect universal joints, tie back propeller shaft in area of center mount.

IMPORTANT: Before removing propeller shaft:

The three-hole flange to the rear axle final drive is balanced with the propeller shaft.

The three-hole flange and propeller shaft must be reassembled in the same position.

Mark three-hole flange (1), flexible disc (2) and propeller shaft (3) in one plane.

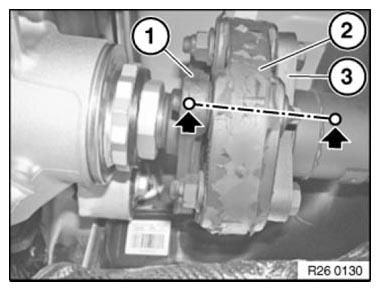

Fig 1: Identifying Propeller Shaft, Flexible Disc And Three-Hole Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Release propeller shaft from thee-hole flange and center mount.

Installation note:

Replace ZNS bolts and self-locking nuts.

Tightening torque: see 3AZ and 5AZ in 26 11 PROPELLER SHAFT, COMPLETE

Release screws and remove flexible disc (1) from propeller shaft.

Tightening torque and angle of rotation: see 4AZ in 26 11 PROPELLER SHAFT, COMPLETE

IMPORTANT: Replace ZNS bolts and self-locking nuts.

Installation note:

During installation arrows (2) on circumference of flexible disc must point to flange arms (3).

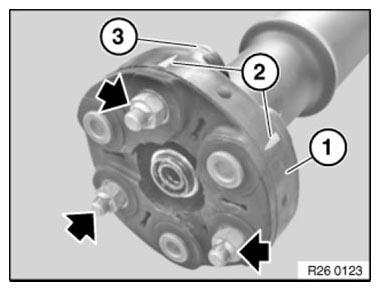

Fig 2: Locating Flexible Disc ZNS Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check centering mount.

Replace damaged CENTERING MOUNT .

IMPORTANT: Plastic centering mount must not be greased.

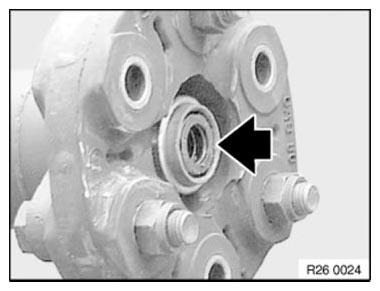

Fig 3: Locating Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.
