26 11 090 Removing and installing/replacing rear centering mount for propeller shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PROPELLER SHAFT .

Completely fill centering bore hole (1) with viscous grease.

Drive special tool 11 1 310 with a plastic hammer into centering bore hole.

The centering bearing (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

NOTE: To drive out the bearing, you can also fill the centering bore hole with water instead of grease.

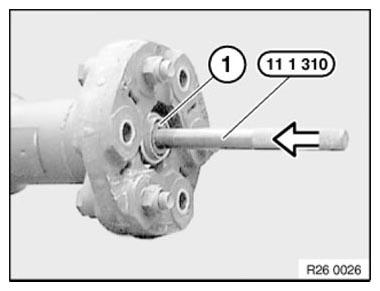

Fig 1: Filling Viscous Grease To Centering Bore Hole Using Special Tool (11 1 310)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Grease or water must be removed from the bearing bore.

Drive in centering mount (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

IMPORTANT: Plastic centering mount must not be greased.

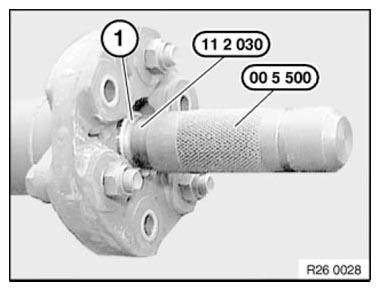

Fig 2: Installing Grease Centering Mount Into Propeller Shaft Using Special Tools (11 2 030 And 00 5 500)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Observe protrusion A = 4⁺² mm of centering (1).

Fig 3: Identifying Centering Protrusion Length

Courtesy of BMW OF NORTH AMERICA, INC.
