26 12 001 Replacing complete propeller shaft center bearing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PROPELLER SHAFT .

NOTE: The propeller shaft is balanced.
The front and rear propeller shafts must be reassembled in the same position.

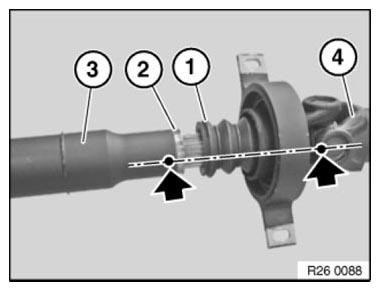

Detach gaiter (1) from groove (2).

Mark front propeller shaft (3) and rear propeller shaft (4) in one plane.

Installation note:

Make sure gaiter (1) is securely fitted in groove (2).

Fig 1: Identifying Gaiter, Groove, Front And Rear Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

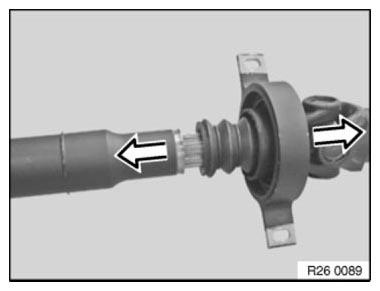

Pull apart propeller shaft.

Fig 2: Pulling Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

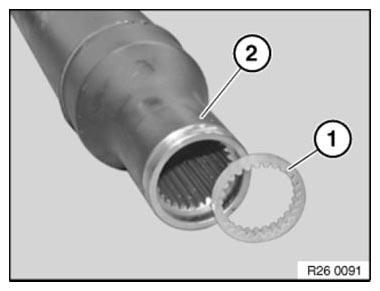

If necessary, insert new clamping ring (1) into front propeller shaft (2).

Fig 3: Identifying Clamping Ring And Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

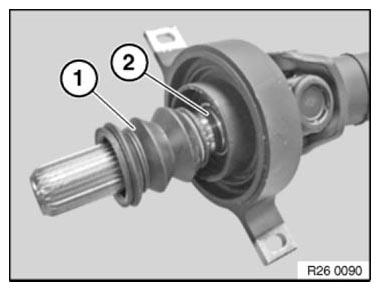

Release gaiter (1) with screwdriver from groove (2) and pull off over longitudinal splines.

Installation note:

Apply a coating of grease to longitudinal splines on shaft.

Grease: refer to BMW SPECIFIED GREASE

Push gaiter (1) during installation into groove (2) and make sure it is firmly fitted.

Observe markings and force front propeller shaft onto longitudinal splines (markings must be flush).

Fig 4: Identifying Gaiter And Groove

Courtesy of BMW OF NORTH AMERICA, INC.

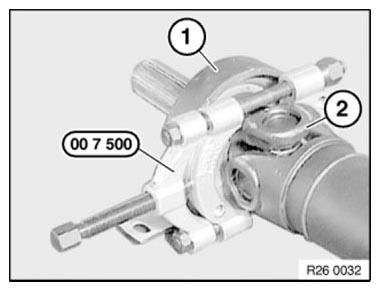

Install special tool 00 7 500 between center mount (1) and universal joint (2).

Fig 5: Installing Special Tool (00 7 500) Between Centre Mount And Universal Joint

Courtesy of BMW OF NORTH AMERICA, INC.

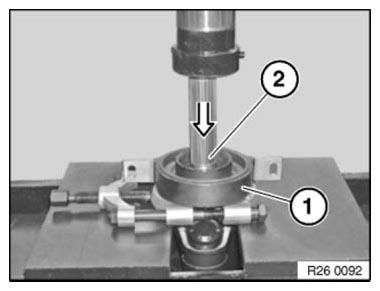

Using a hydraulic press, force center mount (1) off propeller shaft (2).

Fig 6: Pressing Propeller Shaft Centre Mount Using Hydraulic Press

Courtesy of BMW OF NORTH AMERICA, INC.

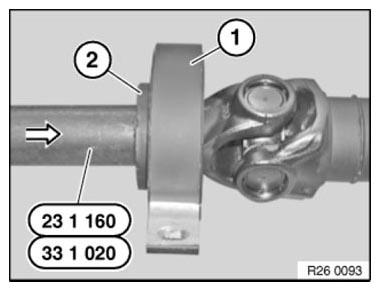

Force new center mount (1) onto propeller shaft. Collar (2) must point in direction of travel towards front propeller shaft. Drive center mount to limit position with special tool 33 1 020 .

Fig 7: Installing Centre Mount Using Special Tool (33 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.
