00-7500 Extractor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

0490482 007500 Extractor MW

NOTE: (Universal extractor Kukko 17/K) For pulling bearing inner race from drive flange on rear wheel bearing [Released]

Consisting of:

1 = 0490483 Spindle
NOTE: (Pressure spindle with bridge) [Released]
2 = 0490484 Spindle
NOTE: (Adjusting spindle (2 pieces) with knurled nuts (4 pieces)) [Released]
3 = 0490485 Spindle
NOTE: (Pressure spindle, lateral) [Released]

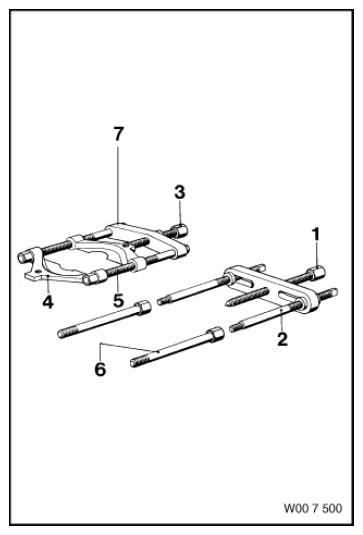

Fig 1: Identifying Extractor (0490482)
Courtesy of BMW OF NORTH AMERICA, INC.
4 = 0490486 Clip
NOTE: (Adjusting jaws (2 pieces)) [Released]
6 = 0490488 Extension
NOTE: (Extension (2 pieces)) [Released]
7 = 0490489 Bridge
NOTE: [Released]
5 = 0490487 Screw
NOTE: (Adjusting screws (1 piece) with nut) For adjusting jaw (1 piece) [Released]
