52 24 400 Replacing seat cover for rear seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SEAT FRAME

Detaching cover and upholstery:

Release all clamps in designated areas
Remove seat cover from upholstery
Remove all remaining clamps from seat cover and/or upholstery

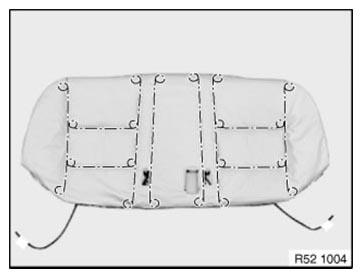

Fig 1: Identifying Seat Cover Clamps Designated Areas
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in mounting for trim wires of new cover
Push trim wires into new seat cover

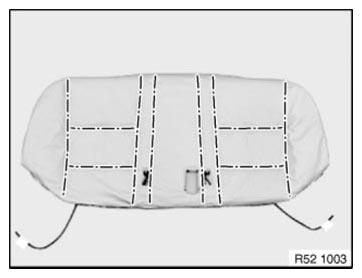

Fig 2: Identifying Seat Cover And Trim Wires
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend new clamp (2) closed with pliers 52 0 050 .

Upholstery
Clamps
Trim wire in seat cover
Trim wire in upholstery
Seat cover

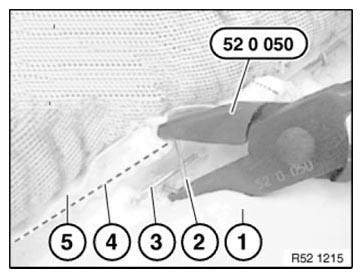

Fig 3: Bending Clamp Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
