52 24 037 Removing and installing/replacing seat frame

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SEAT

Optional equipment with seat heating only:

Unfasten plug connection (1) and disconnect.

Feed wiring harness out of plastic hooks.

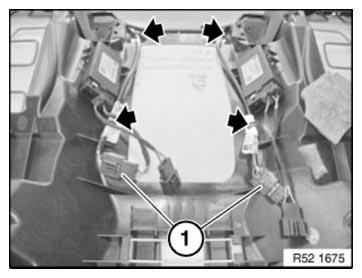

Fig 1: Locating Wiring Harness Plastic Hooks

G08473061

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cover welt in marked area from plastic hooks.

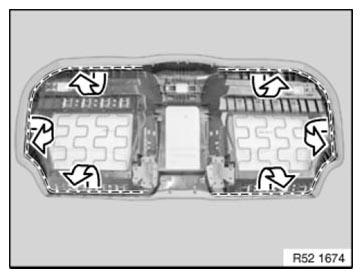

Fig 2: Disengaging Cover Welt From Plastic Hooks

G08473062

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen retainers (1).

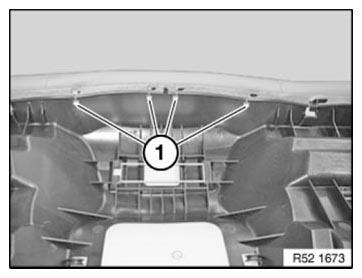

Fig 3: Identifying Retainers

G08473063

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen retainers (1).

Disengage cover tabs from plastic hooks.

Remove padding with seat cover from seat frame.

Replacement only:

If necessary, remove CONTROL UNIT for seat heating.

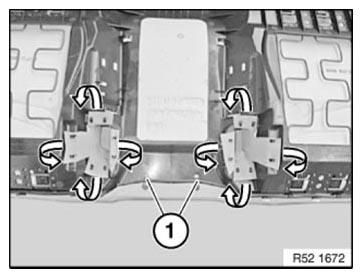

Fig 4: Disengaging Cover Tabs From Plastic Hooks

G08473064

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove all remnants of retainers.

Insert new retainers with special tool 52 0 050 .
