52 24 410 Replacing backrest cover for left or right rear seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEFT OR RIGHT PADDING from backrest shell for rear seat

Detaching cover and padding:

Release all retainers in marked area
Remove cover from padding
Remove remaining retainers from cover and padding

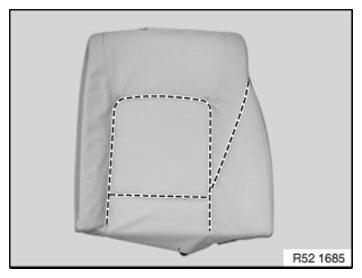

Fig 1: Identifying Backrest Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut pockets in new cover for trim wires
Push trim wires into pockets

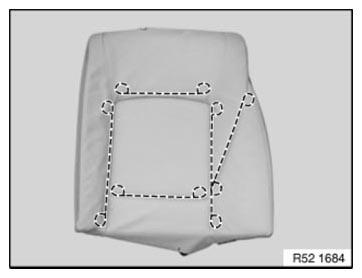

Fig 2: Identifying Seat Cover Trim Wires
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

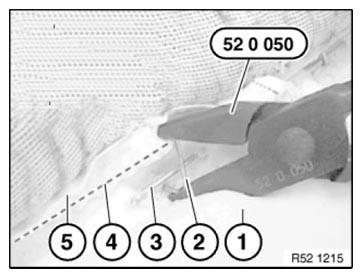

Insert new clamp with special tool 52 0 050 and bend closed.

In so doing, enclose wire in padding and trim wire of cover.

Padding
Retainer
Trim wire in padding
Trim wire in backrest cover
Backrest cover

Fig 3: Bending Clamp Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
