52 24 388 Removing and installing/replacing rear middle head restraint

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BACKREST FOR REAR SEAT

Release screws (1).

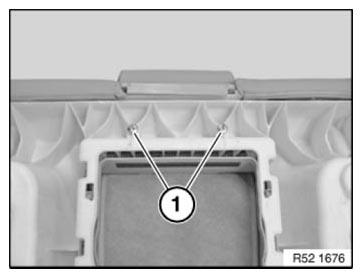

Fig 1: Identifying Rear Seat Backrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out head restraint towards front.

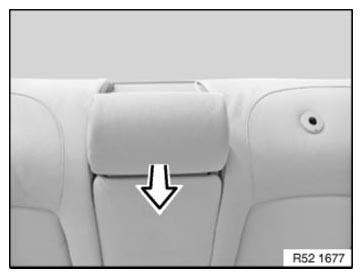

Fig 2: Pulling Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
