52 24 010 Removing and installing/replacing backrest for rear seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SEAT
Remove LEFT AND RIGHT HEAD RESTRAINTS

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque: see 1AZ in 52 24 REAR SEAT, MANUAL

Fig 1: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Open center armrest.

Detach cover from adhesive band.

Release screws (1).

Tightening torque: see 1AZ in 52 24 REAR SEAT, MANUAL

Remove backrest.

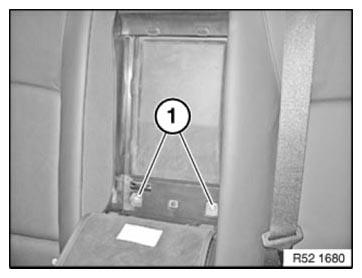

Fig 2: Identifying Backrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.
