52 25 070 Removing and installing/replacing wooden trim on rear center armrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEATHER COVER on rear center armrest

Release screws (1).

Remove wooden trim.

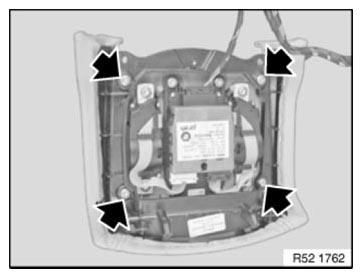

Fig 1: Locating Wooden Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove rear CONTROLLER .
