52 25 025 Removing and installing complete center cushion section for rear seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ARMREST FOR REAR SEAT BACKREST

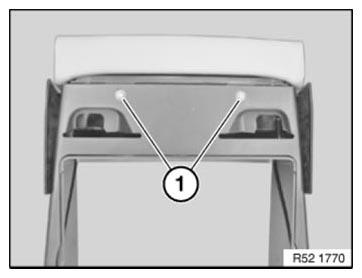

Release screws (1).

Fig 1: Identifying Rear Seat Backrest Armrest Screws

G08473088

Courtesy of BMW OF NORTH AMERICA, INC.

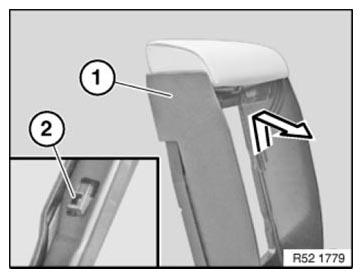

Remove frame (1) in direction of arrow.

Installation:

Make sure retaining lugs are correctly seated in guide.

The frame must be replaced if the retaining lugs are faulty.

Fig 2: Removing Frame

G08473089

Courtesy of BMW OF NORTH AMERICA, INC.

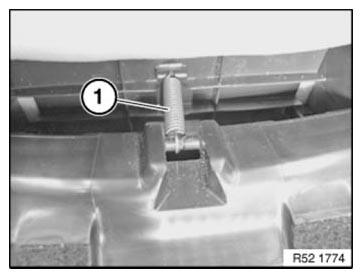

Disconnect spring (1).

Fig 3: Identifying Spring

G08473090

Courtesy of BMW OF NORTH AMERICA, INC.

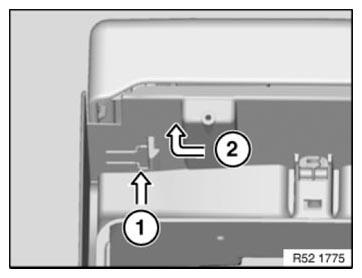

Removing cushion section on left and right in succession:

Press retaining tab.
Press latch mechanism outwards and pull seat cushion upwards.

Unclip cushion section towards rear from pivot bearing.

Fig 4: Pulling Seat Cushion Upwards

G08473091

Courtesy of BMW OF NORTH AMERICA, INC.

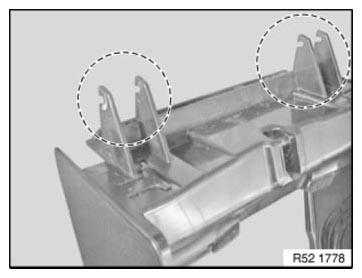

For a better overview, the following operation is shown with the seat cushion removed .

Installation:

Make sure cushion section is correctly seated in pivot bearing.

Fig 5: Identifying Cushion Section

G08473092

Courtesy of BMW OF NORTH AMERICA, INC.
