52 25 018 Removing and installing/replacing four-bar lever on left or right rear seat backrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear HEAD RESTRAINT
Move backrest as far forwards as possible

NOTE: For purposes of clarity, the following operations are shown in the released state.

Detach cover (1) from Velcro fastener.

Pull cover (1) upwards out of guide from four-bar lever.

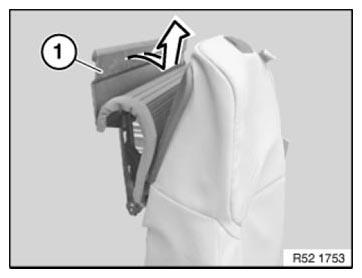

Fig 1: Pulling Cover From Four-Bar Lever

G08473117

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure cover guide is correctly seated on four-bar lever.

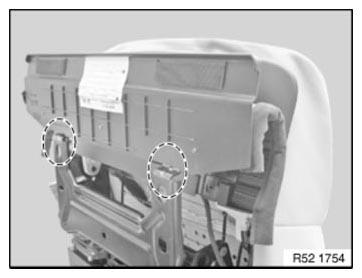

Fig 2: Identifying Cover Guide

G08473118

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Installation note:

Replace nuts (1).

Tightening torque: see 4AZ in 52 25 REAR SEAT, ELECTRIC

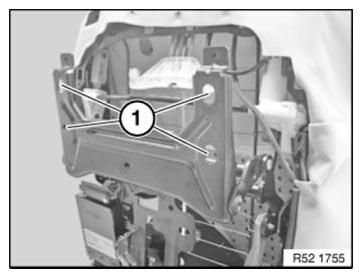

Fig 3: Identifying Rear Seat Backrest Nuts

G08473119

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove four-bar lever (2).

Tightening torque: see 6AZ in 52 25 REAR SEAT, ELECTRIC

Remove CONTROL UNIT .

Remove PUMP .

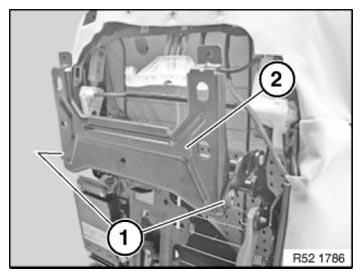

Fig 4: Identifying Four-Bar Lever And Screws

G08473120

Courtesy of BMW OF NORTH AMERICA, INC.
