61 35 085 Removing and installing/replacing control unit/module for left or right seat adjustment (rear Comfort seat)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD
Remove THE CENTER ARMREST FOR THE REAR SEAT BACKREST COMPLETELY

NOTE: For purposes of clarity, the following operations are shown in the released state.

Detach cover (1) from Velcro fastener.

Pull cover (1) upwards out of guide from four-bar lever.

Fig 1: Pulling Cover Upwards Out Of Guide From Four-Bar Lever

G08509406

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, graphic shows backrest removed:
Unlock and disconnect all plug connections in marked area.

Installation note: Plug connections are coded against incorrect assembly.

Press control unit against spring and remove towards top.

Fig 2: Disconnecting Plug Connections In Marked Area

G06895118

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the rear Comfort seat is defective :
Partially remove the backrest for the seat on the left or right.

Necessary preliminary tasks:

Remove LEFT OR RIGHT REAR SEAT

Release screw (1).

Installation note: Replace screw (1).

Tightening torque: see 5AZ in 52 25 REAR SEAT, ELECTRIC .

Fig 3: Identifying Rear Seat Backrest Screw

G08509375

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Carefully raise the seat frame (2) in the direction of arrow.

Installation note: Replace nuts (1).

Tightening torque: see 5AZ in 52 25 REAR SEAT, ELECTRIC .

Fig 4: Identifying Nuts And Seat Frame

G06895126

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Raising Seat Frame

G06895120

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Press control unit against spring and feed out.

Fig 6: Identifying Seat Frame With Plug Connections

G06895121

Courtesy of BMW OF NORTH AMERICA, INC.

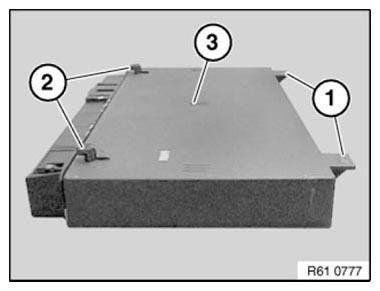

Installation note: Make sure mounting (1) and retaining tabs (2) of control unit (3) are correctly seated.

Fig 7: Identifying Control Unit With Mount And Retaining Tabs

G06895122

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle PROGRAMMING/ENCODING .
