52 14 426 Replacing seat cover for passenger seat (up to 08/09)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: US/CND front passenger seat (with OC3 mat) only:
The upholstery can only be removed in conjunction with the OC3 mat.
If upholstery is defective, both parts may only be replaced together. After fitting new upholstery, enable OC3 mat with BMW diagnosis system.

The operation for removing the upholstery with/without OC3 mat is described in:

Replacing seat cover for front seat
Removing SEAT OCCUPANCY MAT

Enabling seat occupancy detection (OC3 mat):

Connect BMW diagnosis system
Release seat occupancy detection
Delete fault memory if necessary

Seat with air conditioning:

Unfasten plug connection.

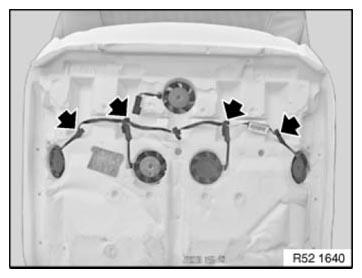

Fig 1: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Remove dividing net (1).

Remove fans (2) from upholstery.

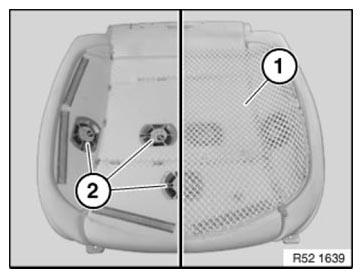

Fig 2: Identifying Dividing Net And Fans

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure fans have correct cable routing (1).

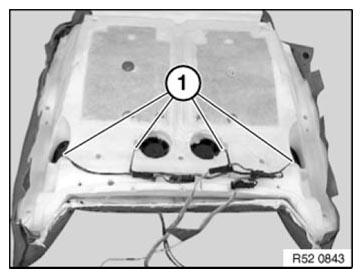

Fig 3: Identifying Fans Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.
