65 77 604 Replacing seat occupancy mat for front passenger seat occupancy detector
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
US/CDN front passenger seat (with CIS mat) only:
The CIS mat can only be removed from the upholstery together with the seat cover.
If CIS mat, seat cover or seat heating is defective, all parts may only be replaced together.
After fitting seat cover, enable CIS mat with BMW DIAGNOSIS SYSTEM .
Necessary preliminary tasks:
- Remove seat cover for front passenger seat. See SEAT COVER (NORMAL/ELECTRICAL, UP TO 09/09) , SEAT COVER (SPORTS, 09/09 ON) , or SEAT COVER (COMFORT, FROM 09/09) .
NOTE:

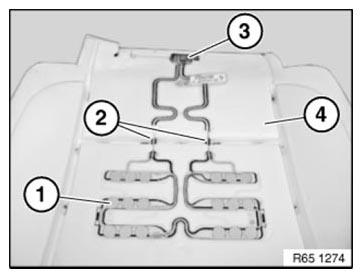

Graphic is an example.
Pull seat occupancy mat (1) off front passenger seat upholstery (4) and feed out connector housing (3).
Installation note:
- To avoid malfunctions, make sure seat occupancy mat (1) is cleanly laid:
- Lay connector housing (3) in designated recess
- Lay seat occupancy mat bridges (2) cleanly and feed into designated recesses
- Secure seat occupancy mat (1) to bonding surface
- Lay seat occupancy mat (1) straight and without kinks
