52 14 422 Replacing padding for driver's seat backrest
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove backrest cover. See BACKREST COVER (NORMAL/ELECTRIC) , BACKREST COVER (COMFORT) , or BACKREST COVER (SPORT) .
Remove dividing net (1) towards top.

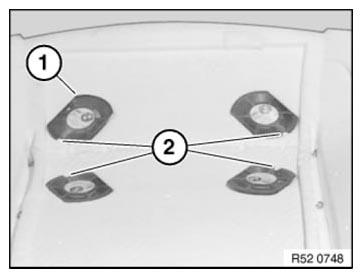

Remove fan (1) towards top.
Installation:
Make sure fans have correct cable routing (2) (cables point to each other).
