52 17 407 Replacing backrest cover for driver's seat (Comfort)

Necessary preliminary tasks:

• Remove DRIVER'S SEAT .
• Remove BOTH REAR PANELS  on front seat backrest
• Remove inner cover on front seat

Optional equipment with seat heating only:

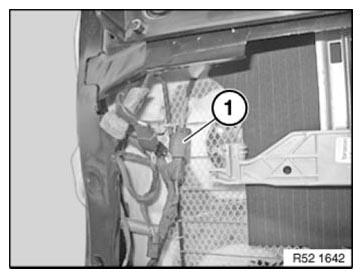

Unlock plug connection (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Optional equipment with climate control only:

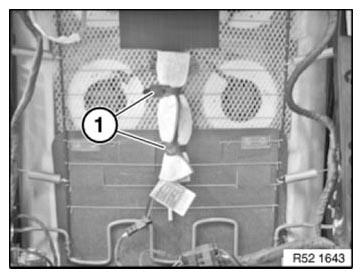

Open Velcro fasteners (1).

Fig 3: Identifying Velcro-Type Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

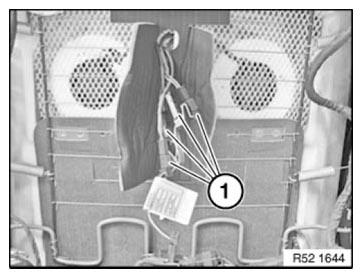

Unlock and disconnect plug connections (1) for fan.

Fig 4: Identifying Fan Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

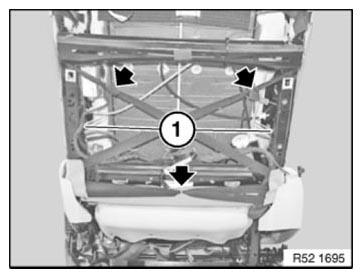

Release clamps from tensioning straps.

Cut open cable strap (1).

Installation note:

52 0 050 Bend new clamps closed with pliers.

Replace cable straps.

Fig 5: Identifying Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

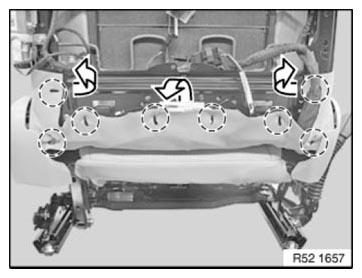

Disengage backrest cover in lower area from attachment points.

Fig 6: Disengaging Lower Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

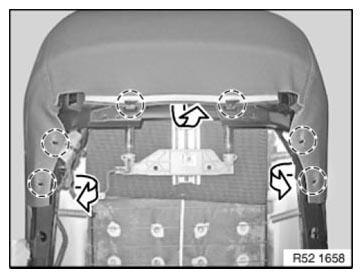

Disengage backrest cover in upper area from attachment points.

Fig 7: Disengaging Upper Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Only with rear monitor optional equipment:

Remove REAR PASSENGER COMPARTMENT MONITOR .

Build date up to 07/2012:

Release tackers in marked area from carrier plate (1).

Remove clamps (2) at top left and right.

Replacement only:

New backrest cover must be cut to size.

Slide cutting base under cover.

Place template on leather edge.

Mark outline and cut out.

Fig 8: Identifying Carrier Plate And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mount head restraint to pretension backrest cover.

The seam of the backrest cover must not be wavy and must be flush with the backrest frame upper edge.

Align backrest cover centrally.

Tack backrest cover with pneumatic tacker (sourcing reference: see BMW workshop equipment) front inside outwards to carrier plate (1).

7 tackers on carrier plate at top.

4 tackers on left and right in side area.

52 0 050 Bend new clamps closed with pliers.

Backrest cover must not show any folds.

Version after 07/2012:

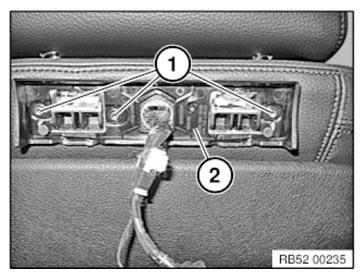

Release screws (1).

Remove cover (2).

Installation note:

Cover (2) is encoded to prevent incorrect assembly.

Fig 9: Identifying Backrest Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

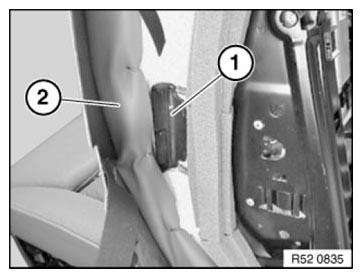

Unclip backrest cover (2) with upholstery from backrest width adjuster (1).

Remove backrest cover (2) complete with upholstery towards front.

Fig 10: Identifying Adjuster And Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

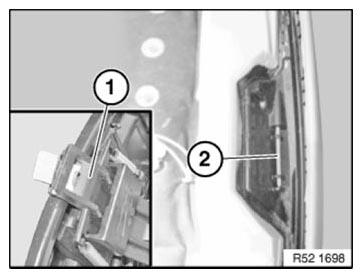

Installation note:

Adjusting unit (1) must be secured on left and right in foamed insert.

Clamp of adjusting unit (1) must snap audibly into linkage (2).

Fig 11: Identifying Adjusting Unit And Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

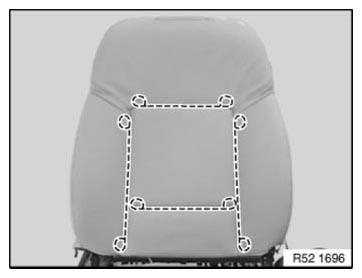

Release all clamps in marked area.

Remove backrest cover from upholstery.

Fig 12: Identifying Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

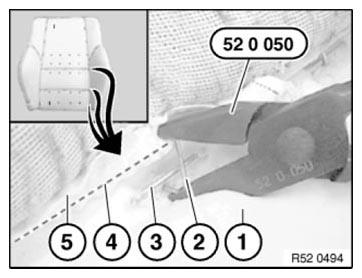

Installation note:

Clamp positions are marked in upholstery.

Bend new clamp (2) 52 0 050 closed with pliers.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in backrest cover
5. Backrest cover
   Fig 13: Bending Retainer Using Pliers

   Courtesy of BMW OF NORTH AMERICA, INC.

Pull trim wires out of backrest cover.

Installation note:

Slide trim wires into new backrest cover.

If necessary, cut into new part.

Fig 14: Identifying Backrest Cover And Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

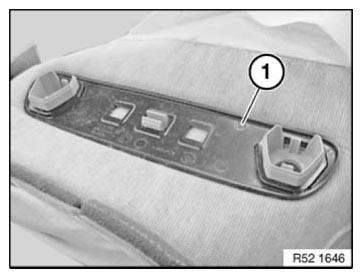

Lever out locking strip of head restraint guide with special tool 100 9 317 .

Fig 15: Identifying Head Restraint Guide Locking Strip

Courtesy of BMW OF NORTH AMERICA, INC.
