52 14 060 Removing and installing/replacing valve body for left or right front lumbar support (normal/electric)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANEL on front seat backrest

Remove valve body in direction of arrow from backrest frame.

Installation note:

Check that valve body is correctly seated.

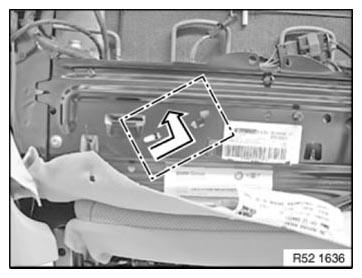

Fig 1: Removing Valve Body From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (3) and disconnect.

Unlock quick connectors and detach air hoses (1) and (2).

Valve unit for lumbar support:

Hose (clear), lumbar support drive
Hose (blue/red), lumbar support

Installation note:

Connections are coded against incorrect assembly.

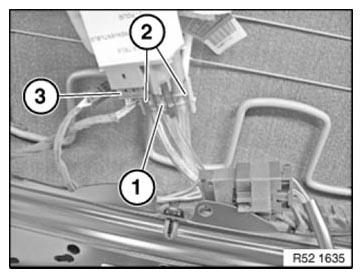

Fig 2: Identifying Air Hoses And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out a FUNCTIONAL CHECK .
