52 14 010 Removing and installing/replacing both seat rails on left or right front seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVER'S or PASSENGER seat.
Remove lower strap (belt tensioner). See LOWER STRAP, DRIVER'S SEAT or LOWER STRAP, FRONT PASSENGER SEAT .
Remove TRIMS FOR TOP RAIL

Unlock and disconnect plug connection (1) on drive for longitudinal seat adjustment.

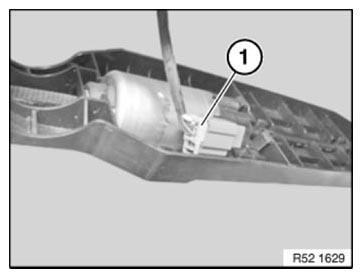

Fig 1: Identifying Plug Connection

G08472438

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Tightening torque: see 6AZ in 52 10 FRONT SEATS

Release nuts (2) on left and right on carrier plate.

Remove seat rails with motor carrier plate.

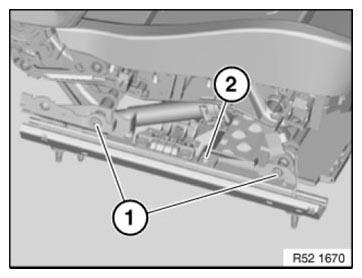

Fig 2: Identifying Carrier Plate Nuts And Screws

G08472439

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Release screws (1).

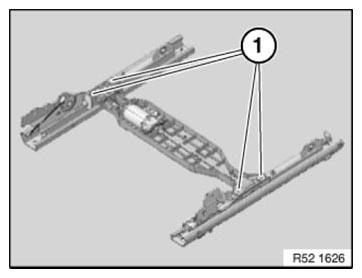

Fig 3: Identifying Carrier Plate Screws

G08472440

Courtesy of BMW OF NORTH AMERICA, INC.

Detach left or right seat rail from flex-shaft.

Detach motor retaining plate with drive and flex-shaft from opposite seat rail.

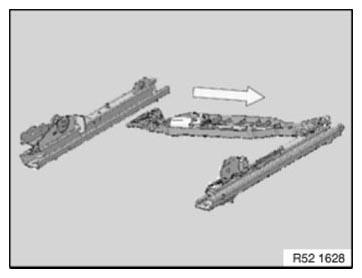

Fig 4: Removing Left Or Right Seat Rail From Flex-Shaft

G08472441

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

PTFE hoses are shrink-fitted onto end pieces.

Check that hoses are free from damage.

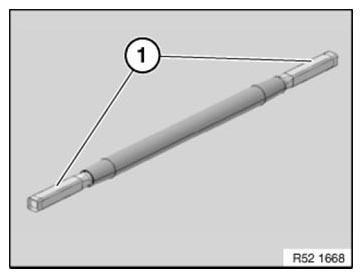

Fig 5: Identifying PTFE Hoses End Pieces

G08472442

Courtesy of BMW OF NORTH AMERICA, INC.
