Removing and installing front seat, driver's side

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

IMPORTANT:

An airbag module and a pyrotechnical seat belt tensioner are installed in the front seat.

Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

Installation note:

Powerlok screws must be replaced and must not be reused
Powerlok screws are mechanical screw locks with trilobular threads

Move front seat rearwards.

Release screws (1).

Installation note:

Replace screws.

Tightening torque: see 1AZ in 52 10 FRONT SEATS

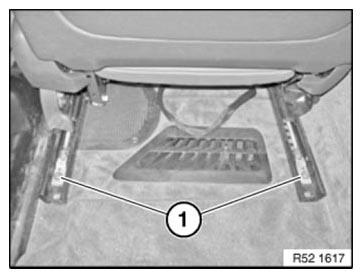

Fig 1: Identifying Front Seat Rearward Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Move front seat forwards.

Release screws.

Installation note:

Replace screws.

Tightening torque: see 1AZ in 52 10 FRONT SEATS

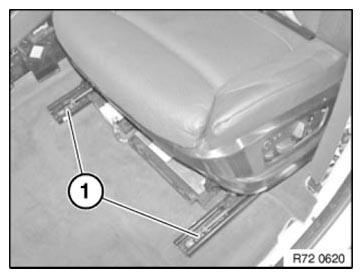

Fig 2: Identifying Front Seat Forward Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only series F01/F02:

Release screw (1).

Tightening torque: see 7AZ in 72 11 SEAT BELTS

Remove lock washer.

Pull seat belt strap (2) out of end fitting tensioner.

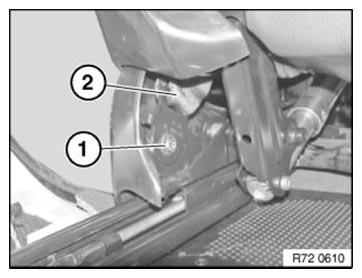

Fig 3: Pulling Seat Belt Strap From End Fitting Pretensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Only series F07:

Move front seat upwards.

Release screw (1) on front seat.

Installation note:

Replace screw.

Tightening torque: see 2AZ in 72 11 SEAT BELTS

Feed out belt end fitting (2).

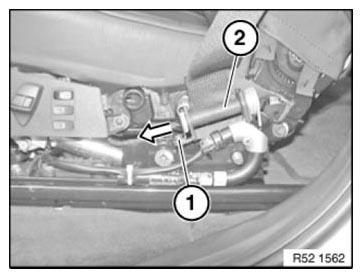

Fig 4: Identifying Belt End Fitting And Front Seat Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Carpet must not project between seat rail and floor panel in area of attachment points (creaking noise).

Unclip cover (1) towards front.

Release cable strap on plug connection.

Installation note:

Replace defective cable strap.

Unfasten plug connection (2) and disconnect.

Unclip wiring harness from seat mechanism.

IMPORTANT:

Cover door sill with protective covers (risk of damage).

Carefully lift out front seat.

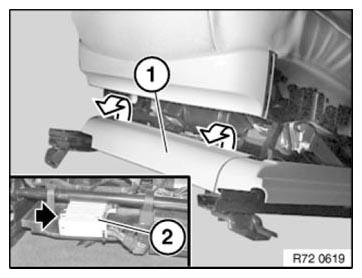

Fig 5: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure wiring harness installation arrangement is correctly routed in order to avoid creaking noises, jamming or collisions.

Clip in cable clip for wiring harness.

Lay wiring harness only in area (1) of cover.

Fitting the wiring harness between the carpet and the cover in control unit area (2) will result in creaking noises.

Carry out a complete forward/back adjustment with front seat.

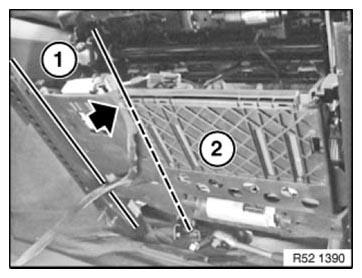

Fig 6: Locating Wiring Harness Installing Area

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: When carrying out further work on the front seat, it is absolutely imperative to observe the SAFETY REGULATIONS on handling airbag modules and pyrotechnical seat belt tensioners
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.
