52 14... Removing and installing covers on seat rails

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Front cover:

Move front seat as far back as possible.

Press retaining lugs of cover with screwdriver downwards and carefully lift off sideways from seat rail
Simultaneously detach cover

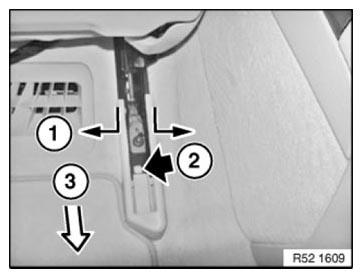

Fig 1: Removing Seat Rails Front Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Overview of front cover.

Installation note:

Retaining lugs must not be damaged.

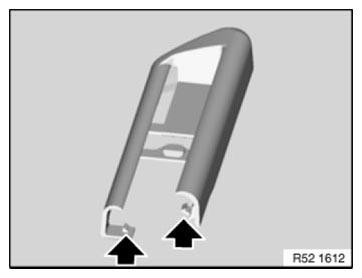

Fig 2: Locating Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Rear cover:

Move front seat as far forward as possible.

Press retaining lugs of cover with screwdriver downwards and carefully lift off sideways from seat rail
Press locking tab
Simultaneously detach cover

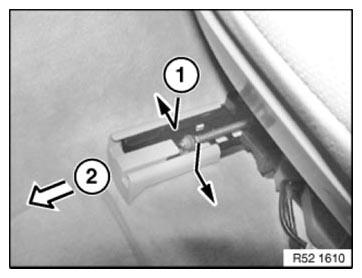

Fig 3: Pressing Seat Rail Locking Tab
Courtesy of BMW OF NORTH AMERICA, INC.

Overview of rear cover.

Installation note:

Retaining lugs must not be damaged.

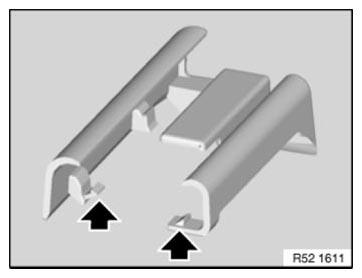

Fig 4: Locating Rear Cover Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
