67 31 610 Removing and installing/replacing drive for seat tilt adjustment (comfort seats in rear compartment)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove complete PADDING FOR REAR SEAT

Installation:

Powerlok screws must be replaced and must not be reused
Powerlok screws are mechanical screw locks with trilobular threads

Installation:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 minutes (start of curing)
Microencapsulated screws must not be retightened
Clean thread of nut beforehand in event of repeated use

Unfasten plug connection (1) and disconnect.

Release screw (2).

Installation:

Replace screw (2).

Tightening torque: see 13AZ in 67 31 DRIVE, SEAT ADJUSTMENT

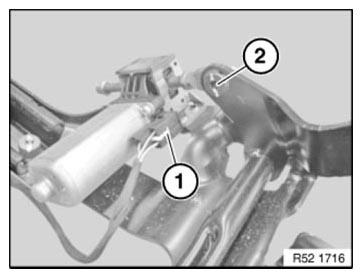

Fig 1: Identifying Plug Connection And Screws

G08472894

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Replace screws (1).

Tightening torque: see 12AZ in 67 31 DRIVE, SEAT ADJUSTMENT

Remove drive for seat tilt adjustment (2).

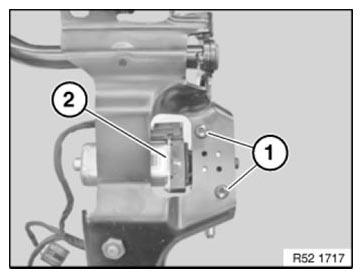

Fig 2: Identifying Seat Tilt Adjuster Drive And Screws

G08472895

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation position for controlled pan installation .

Adjust position (A) of seat tilt adjustment from rear stop.

= 29.4 mm

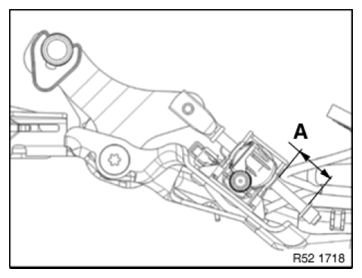

Fig 3: Identifying Seat Tilt Adjustment Position
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE

Replacement only:

INITIALIZE drive unit for seat tilt adjustment.
