67 31 600 Removing and installing/replacing forward/back seat adjustment drive unit (comfort seats in rear passenger compartment)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COMPLETE UPHOLSTERY FOR REAR SEAT

Unclip flex shaft cover (1) towards top.

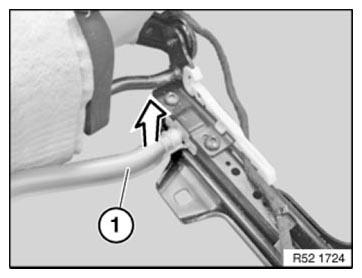

Fig 1: Disconnecting Flex Shaft Cover

G08472913

Courtesy of BMW OF NORTH AMERICA, INC.

Pull long sleeve tube (1) with flex shaft out of gearbox.

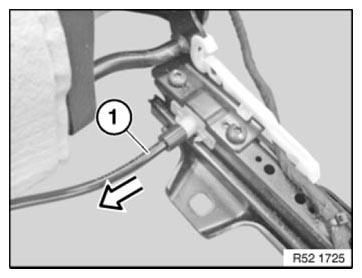

Fig 2: Pulling Long Sleeve Tube From Gearbox

G08472914

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

Release screws (1).

Tightening torque: see 10AZ in 67 31 DRIVE, SEAT ADJUSTMENT

Remove forward/back seat adjustment drive unit.

Detach flex shafts from drive.

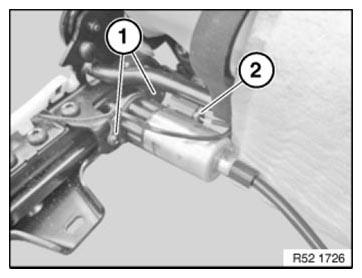

Fig 3: Identifying Plug Connection And Screws

G08472915

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure flex shafts are correctly seated.

Make sure rubber decoupler is correctly seated on drive.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE

Replacement only:

INITIALIZE forward/back seat adjustment drive unit.
