67 31 520 Removing and installing/replacing seat height adjustment drive unit: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVER'S or FRONT PASSENGER seat.

Set down front seat sideways on a suitable surface.

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque: see 1AZ in 67 31 DRIVE, SEAT ADJUSTMENT

Feed out seat height adjustment drive unit (3) and remove.

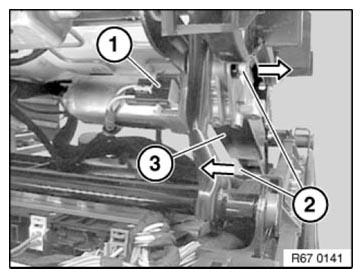

Fig 1: Removing Seat Height Adjustment Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit seat height adjustment drive unit (1) with plastic clamp (2) only.

Make sure plastic clamp (2) is correctly seated.

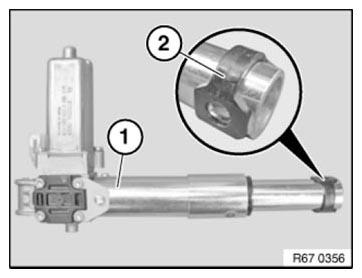

Fig 2: Identifying Seat Height Adjustment Drive Unit And Plastic Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
