52 17 205 Removing and installing/replacing both rear panels on left or right front seat backrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

With rear-seat entertainment option only:

Remove REAR PASSENGER COMPARTMENT MONITOR COVER

Operation is shown on the left seat. When removing from the right seat, transpose the pull and striking sides accordingly.

Rear panel upper part:

Grip between rear panel and backrest cover on tunnel side until clamp can be felt (do not pull).
At same time, firmly punch towards middle of seat on inside (tunnel side) at top.
Upper clamps spring out of seat guide.
Pull upper rear panel up out of lower guides.

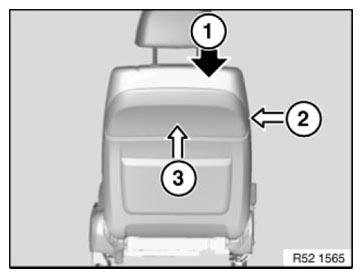

Fig 1: Pulling Upper Rear Panel From Lower Guides
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Clamp
Guide
Upper rear panel

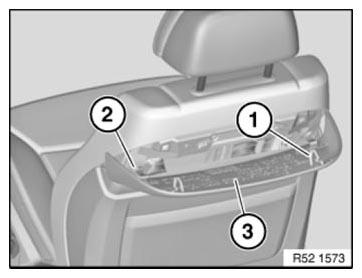

Fig 2: Identifying Upper Rear Panel, Clamp And Guide
Courtesy of BMW OF NORTH AMERICA, INC.

Rear panel lower section:

Grip between rear panel and backrest cover on tunnel side until clamp can be felt (do not pull).
At same time, firmly punch towards middle of seat on inside (tunnel side) at top.
Upper clamps spring out of seat guide.
Pull lower rear panel up out of lower guides

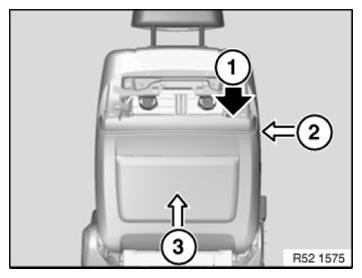

Fig 3: Pulling Lower Rear Panel From Lower Guides
Courtesy of BMW OF NORTH AMERICA, INC.

Unclip springs (1) on left and right.

Remove lower rear panel (3) upwards out of guide (2).

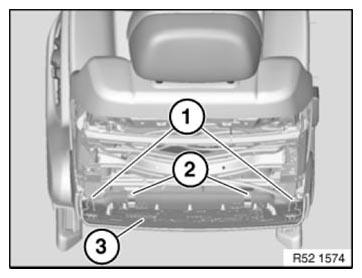

Fig 4: Identifying Lower Rear Panel, Springs And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
