52 17 035 Removing and installing/replacing gearing for head restraint adjustment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SHAFT FOR BACKREST HEAD ADJUSTMENT

Release screws (4) on left and right.

Tightening torque: see 10AZ in 52 10 FRONT SEATS

Remove retainer (1) on left and right.

Remove gearing (2) on left and right straight towards front.

Installation:

To ensure identical adjustment of gearings (2), carry out following work step on both gearings:

Twist out component (3) until threaded rods (5) are of equal length.

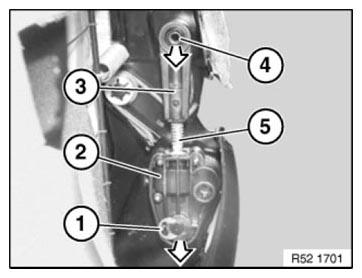

Fig 1: Removing Backrest Head Adjustment Shaft
Courtesy of BMW OF NORTH AMERICA, INC.
