52 17 034 Removing and installing/replacing shaft for head restraint adjustment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove BOTH REAR PANELS

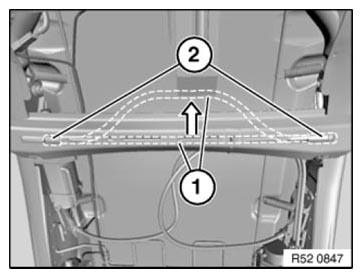

Bend shaft (1) in direction of arrow.
Pull shaft (1) out of gear (2) and remove.
