52 17 028 Removing and installing/replacing pump for pressure distributor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANEL on front seat backrest

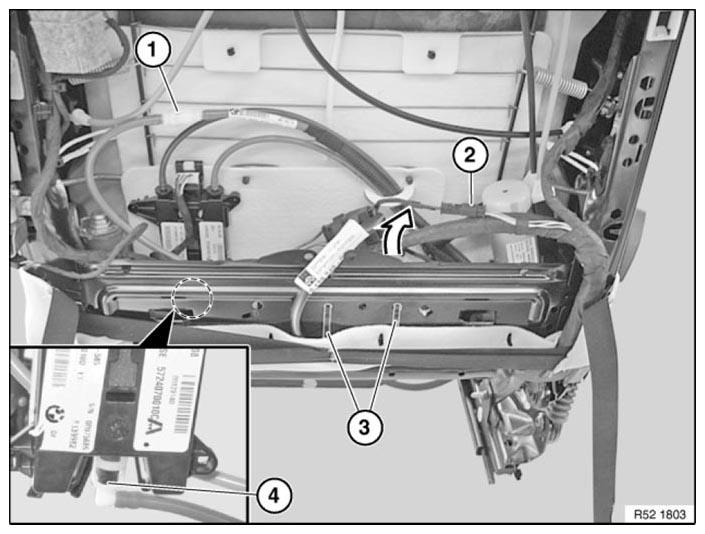

Fig 1: Identifying Quick-Connect Coupling, Plug Connection And Cable Tie
Courtesy of BMW OF NORTH AMERICA, INC.

Unlock quick-connect coupling (1) and disconnect.

Unfasten plug connection (2) and disconnect.

Cut open cable tie (3).

Installation:

Replace faulty cable ties.

Unlock quick-connect coupling (4) and disconnect.

Lift out pump for pressure distributor.

NOTE: Carry out FUNCTION CHECK WITH ADAPTER CABLE .
