67 32 600 Replacing fans for seat surface on front seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove seat cover for driver's or front passenger seat. See DRIVER'S SEAT or PASSENGER SEAT .
ECE version:
If necessary, remove SENSOR MAT (SEAT OCCUPANCY MAT)
US version:
If applicable, remove the SENSOR MAT (OC3-MAT) or SENSOR MAT (CIS MAT)

Unfasten plug connection.

Installation note:

Make sure fans have correct cable routing (1).

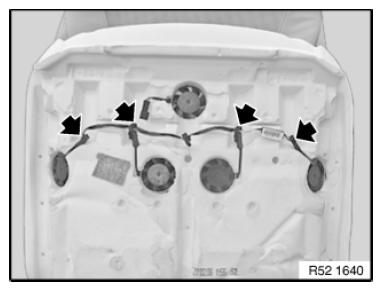

Fig 1: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, picture shows seat cushion and seat cover removed.

Raise separating net (1).

Pull faulty fans (2) out of seat cushion slightly and disconnect plug connections behind.

Fig 2: Identifying Dividing Net And Fans

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
