67 65 019 Removing and installing/replacing drive for left or right roller sun blind

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR TRIM PANEL

Release screws (1).

Tightening torque 51 16 20AZ .

Release screw (2).

Tightening torque 51 16 19AZ .

Fig 1: Identifying Door Window Screws

G06885496

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Pull flex shaft out of drive.

Installation:

Make sure flex shaft is correctly seated in drive.

Fig 2: Identifying Plug Connection

G06885497

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw flex shaft (1) from gearing (2).

Installation:

Make sure flex shaft (1) is correctly seated in gearing (2).

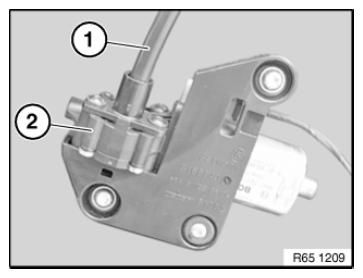

Fig 3: Identifying Flex Shaft And Gearing

G08510332

Courtesy of BMW OF NORTH AMERICA, INC.
