18 40 010 Removing and installing/renewing left exhaust manifold (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!
Only perform these tasks on an engine that has cooled down.

Necessary preliminary tasks:

Remove CLEAN-AIR PIPE, cylinders 7-12
Remove INTERMEDIATE PIPE, cylinders 7-12

Release screws (1).

Tightening torque: see 9AZ in 18 31 EXHAUST SYSTEM

Remove heat shield (2).

Release screw (3).

Tightening torque: see 10AZ in 18 31 EXHAUST SYSTEM

Release holder (4) with check valve and lay to one side.

Fig 1: Identifying Heat Shield, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts along line (1).

Replace self-locking nuts

Tightening torque: see 8AZ in 18 31 EXHAUST SYSTEM

Feed out exhaust manifold (2) and remove.

Replace seal.

Installation:

Seal beads faces the exhaust manifold.

Reinstall holder (3) for the catalytic converter.

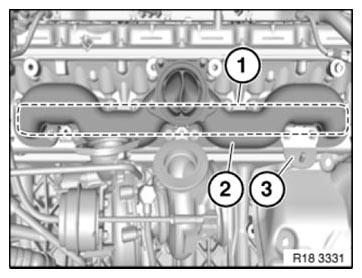

Fig 2: Identifying Exhaust Manifold, Catalytic Converter Holder And Line

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check exhaust system for leaks.
