18 40 070 Removing and installing left intermediate pipe (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!

Only perform this work after engine has cooled down.

Necessary preliminary tasks:

Remove CATALYTIC CONVERTER, cylinders 7 - 12

Unscrew nuts (1).

Replace self-locking nuts.

Tightening torque: see 6AZ in 18 31 EXHAUST SYSTEM

Release clamp (2).

If necessary, replace clamp.

Tightening torque: see 7AZ in 18 31 EXHAUST SYSTEM

Feed out intermediate pipe (3) and remove.

Fig 1: Identifying Intermediate Pipe, Clamp And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

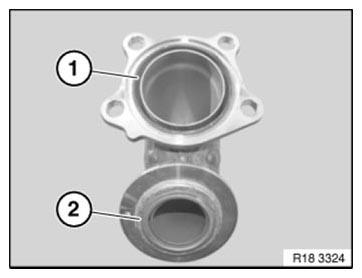

NOTE: Renew gaskets (1) and (2).

Fig 2: Identifying Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

Check exhaust system for leaks.
