18 32 050 Removing and installing/replacing cylinder 1-6 catalytic converter (N74)

Necessary preliminary tasks:

• Remove right INTAKE FILTER HOUSING
• Remove CHARGE AIR PIPE cylinder 1-6
• Remove EXHAUST SYSTEM
• Remove CONTROL SENSOR cylinder 1-6
• Remove MONITORING SENSOR cylinder 1-6

Graphic shows the left side, the procedure for the right side is identical.

Unscrew nuts (1).

Remove heat shield (2).

Fig 1: Identifying Heat Shield And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: see 3AZ in 18 31 EXHAUST SYSTEM

Remove holder (2).

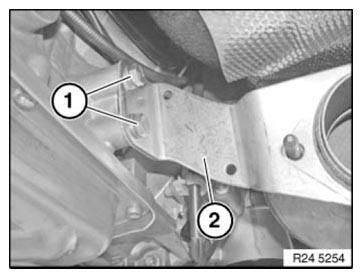

Fig 2: Identifying Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1).

Tightening torque: see 4AZ in 18 31 EXHAUST SYSTEM

Renew clamp and gasket.

Slacken nut (2).

Tightening torque: see 5AZ in 18 31 EXHAUST SYSTEM

Feed out catalytic converter (3) and remove.

Installation:

For easier installation the V-band clamp can be turned by 180°. Make sure that a clearance of 20 mm to other components is maintained.

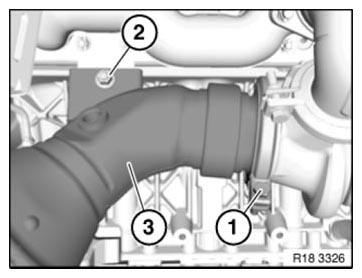

Fig 3: Identifying Catalytic Converter, Clamp And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The ends of the V-band clamps must rest parallel to each other.

Tightening torque: see 4AZ in 18 31 EXHAUST SYSTEM

Fig 4: Identifying V-Band Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If you can see a gap between the ends of the V-band clamps, release and then repeat the screw connection.

Tightening torque: see 4AZ in 18 31 EXHAUST SYSTEM

Fig 5: Identifying Gap Between Ends Of V-Band Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If the ends of the V-band clamps are positioned under each other, release and then repeat the screw connection.

Tightening torque: see 4AZ in 18 31 EXHAUST SYSTEM

Fig 6: Positioning Of V-Band Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check exhaust system for leaks.
