13 71 180 Removing charge air pipe, cylinders 1-6 (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right INTAKE FILTER HOUSING

Slacken nut (1).

Unfasten screws (2).

Remove heat shield (3).

Fig 1: Identifying Heat Shield, Screws And Nut

G08469786

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic shows the left side, the procedure for the right side is identical.

Release clamp (1)

Tightening torque: see 10AZ in 13 71 AIR INTAKE SYSTEM

Remove hose fitting (2).

Fig 2: Identifying Hose Fitting And Clamp

G08469757

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare tool as illustrated.

Fig 3: Identifying Tool

G08469788

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic shows the left side, the procedure for the right side is identical.

Release clamp (1) on throttle body.

Tightening torque: see 5AZ in 13 71 AIR INTAKE SYSTEM

Release screws (2) on turbocharger.

Tightening torque: see 2AZ in 13 71 AIR INTAKE SYSTEM

Unlock plug on pressure sensor and disconnect.

Pull off air duct (3) from exhaust turbocharger, feed out and remove.

Fig 4: Identifying Air Duct, Clamp And Screw

G08469789

Courtesy of BMW OF NORTH AMERICA, INC.

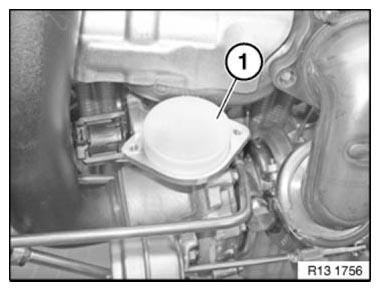

Close off exhaust turbocharger with special tool (1) 11 5 220.

Fig 5: Closing Off Exhaust Turbocharger Using Special Tool 11 5 220

G08469790

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
