51 24 050 Removing and installing/replacing lock element (lock cylinder) for rear lid

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM STRIP FROM REAR LID CENTRE SECTION

Release screws (1).

Tightening torque 51 24 02AZ .

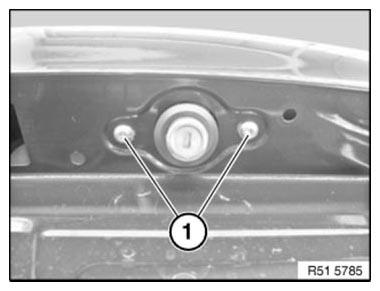

Fig 1: Identifying Trim Strip Screws

G08471995

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Press counter-supports (1) at back to prevent accompanying rotation.

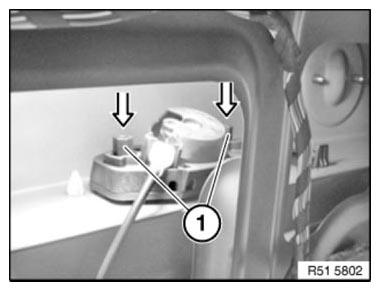

Fig 2: Pressing Counter-Supports

G08471996

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable sleeve (1).

Feed out Bowden cable nipple in direction of arrow.

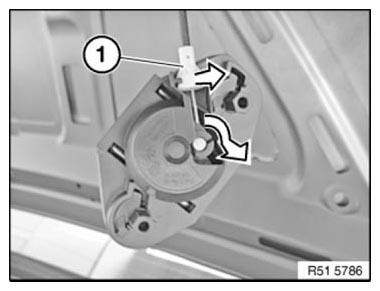

Fig 3: Feeding Out Bowden Cable Nipple

G08471997

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure Bowden cable (1) is correctly positioned in rear lid.

Lay Bowden cable (1) without kinks.

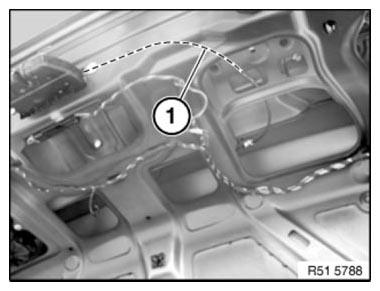

Fig 4: Identifying Bowden Cable

G08471998

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.
