51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR SILL COVER STRIP, FRONT (INSIDE) right
Remove trim for instrument panel at bottom right. See TRIM (ECE ONLY) or TRIM (US VERSION ONLY) .

Detach edge protection (1) in area of side trim (3).

Release clips (2) in direction of arrow.

Pull out side trim panel (3) from carpet.

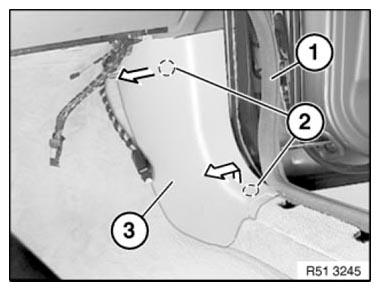

Fig 1: Pulling Out Side Trim Panel From Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of side trim panel (4) must not be damaged or missing:

Clips
Insulating mat
Tabs (for inserting in carpet)

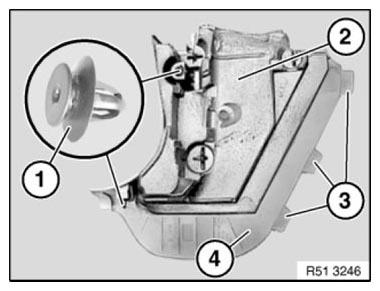

Fig 2: Identifying Side Trim Panel, Insulating Mat, Tabs And Clips
Courtesy of BMW OF NORTH AMERICA, INC.
