51 22 280 Removing and installing/replacing door stop on left or right rear door
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove SOUND INSULATION
Attention!
Secure rear door against falling closed.
After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork).

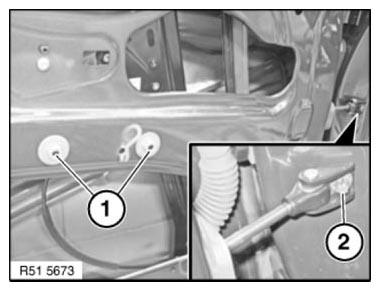

Release nuts (1) and remove washers.
Tightening torque 51 22 4AZ .
Release screw (2).
Tightening torque 51 22 3AZ .
Feed out door brake towards bottom.
