51 12 156 Removing and installing (replacing) rear bumper panel: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

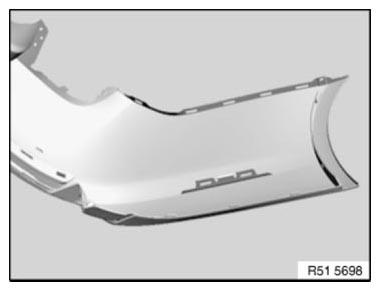

- Starting from the outside, carefully snap out the individual guide tabs on left and right

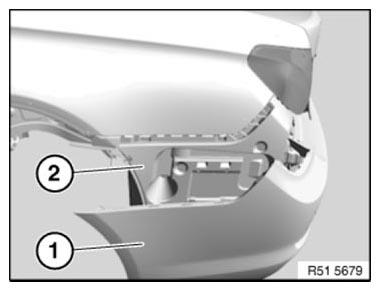

- Pull bumper panel (1) straight towards rear with aid of a 2nd person
- If necessary, disconnect plug connections
- Remove the bumper panel (1)
Installation note:
PROTECTIVE FILM FOR PREVENTING PAINT ABRASION in the area of the invisible joint (side frame) must not de damaged or missing.
Guide tabs at top and bottom must not be damaged!
Observe 41 00... BODY GAP DIMENSIONS .
