51 12... Protective film for preventing paint abrasion in the area of the invisible joint (side frame)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

To prevent paint abrasion between rear bumper trim (3) and side frame (1), protective film (2) and (4) should be glued in the area of the invisible joint.

Protective film (2) is a shaped part, protective film (4) is a foil strip (sourcing reference BMW Parts Department).

Installation note:

Protective film must not protrude over edge (5) of side frame (1) when being glued.

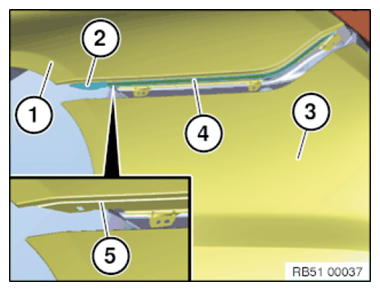

Fig 1: Identifying Rear Bumper Trim, Side Frame And Protective Film And Protrude Over Edge
G08471671Courtesy of BMW OF NORTH AMERICA, INC.
