51 12 156 Removing and installing (replacing) rear bumper panel: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
To guarantee system function on vehicles with LANE CHANGE WARNING SENSOR:
- there must be no mechanical damage (e.g. dents) and no body repair work with filler or painting (several coats) must be carried out in a 10 cm radius about the left or right sensor on the bumper panel
- no stickers must be attached in the area of the sensor
Refer to relevant instructions in PAINTWORK .
Necessary preliminary tasks:
- Remove COVER ON REAR BUMPER PANEL
Version with Smart Opener:
- Remove SENSOR LINE AT TOP

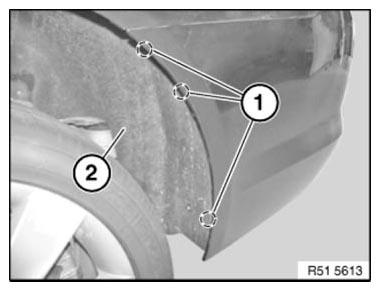

Release screws (1) on wheel arch cover at rear (2).

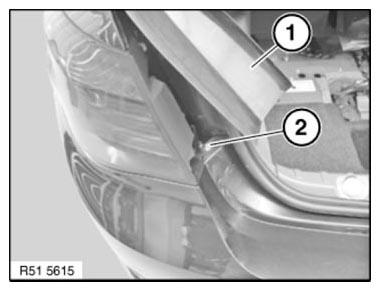

Raise rear light cover (1).
Lever out left expanding rivet (2) underneath.

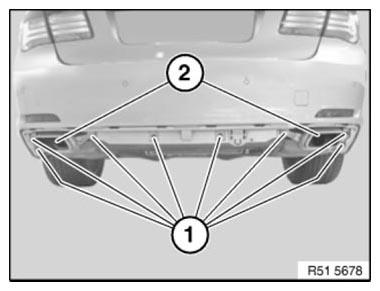

Release screws (1).
If necessary, remove exhaust system trims (2).
IMPORTANT:
Risk of damage!
Bumper panel (1) is engaged at the sides in the holder (2) and must be unlocked for removal.
Bumper panel (1) is engaged at the sides in the holder (2) and must be unlocked for removal.
