51 12 164 Removing and installing/replacing trim on bumper trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

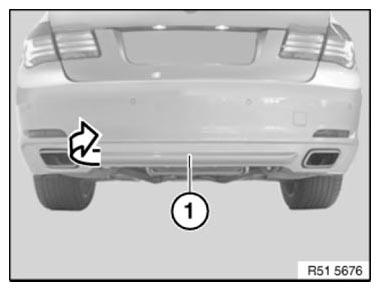

Unclip trim on bumper trim at rear (1) in direction of arrow starting on outside.

Fig 1: Removing Rear Bumper Trim
G08471685Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All retaining lugs and guides on trim for bumper trim at rear (1) must not be damaged.

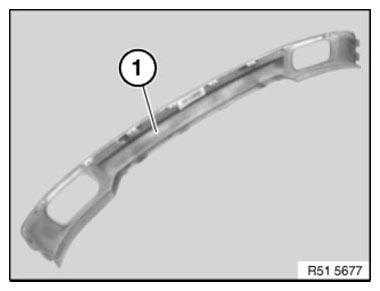

Fig 2: Identifying Rear Bumper Trim
G08471686Courtesy of BMW OF NORTH AMERICA, INC.
