51 16 365 Removing and installing/replacing glovebox cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT GLOVEBOX WITH HOUSING .

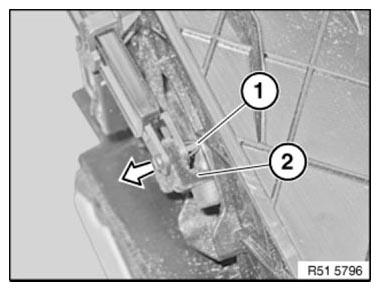

Release locking pin (1) and press out of glovebox guide (2) in direction of arrow.

Fig 1: Releasing Glovebox Guide

Courtesy of BMW OF NORTH AMERICA, INC.

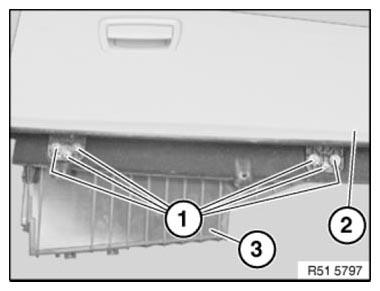

Release screws (1).

Remove glovebox cover (2) from glovebox housing (3).

Fig 2: Identifying Glovebox Cover, Glovebox Housing And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

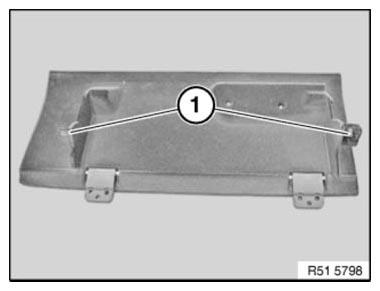

Make sure glovebox cover (1) is correctly guided.

Fig 3: Identifying Glovebox Cover

Courtesy of BMW OF NORTH AMERICA, INC.
