51 16 282 Removing and installing/replacing left or right lower housing section (up to 07/12)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PROTECTIVE CAP ON LEFT EXTERIOR MIRROR

Release screws (1).

Pull off lower housing section (2) towards rear.

Installation note:

Make sure lower housing section (2) is correctly seated in area (3).

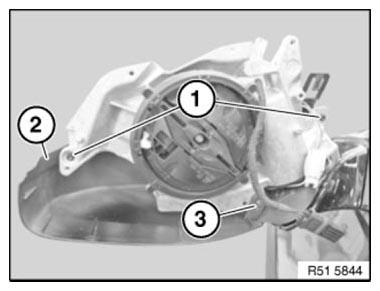

Fig 1: Identifying Lower Housing Section, Seated Area And Screws

G08471779

Courtesy of BMW OF NORTH AMERICA, INC.

Version with exterior mirror camera:

Release screw (1) and feed out holder (2).

Installation note:

Small image with view of rear.

Holder (2) must be correctly seated in guides (3).

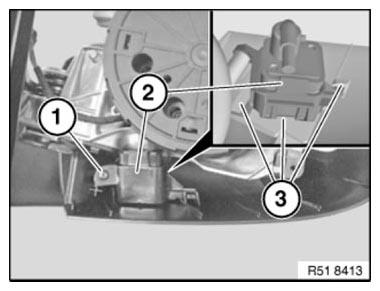

Fig 2: Identifying Holder And Guides, Screws

G08471780

Courtesy of BMW OF NORTH AMERICA, INC.

Fold exterior mirror (1) back.

Lift protective cap (2) downwards over latch mechanism (3).

Feed protective cap (2) in direction of arrow out of exterior mirror (1).

NOTE: Protective cap (2) must be bent slightly during removal.

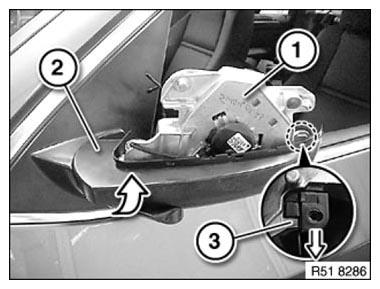

Fig 3: Feeding Exterior Mirror Protective Cap

G08471781

Courtesy of BMW OF NORTH AMERICA, INC.
