51 16 273 Removing and installing/replacing fastener for center armrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE ARMREST

Unlock fastener for center armrest (1) and pull out in direction of arrow from center armrest (2).

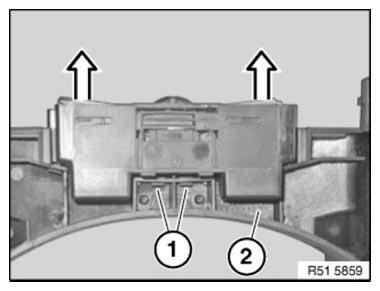

Fig 1: Pulling Centre Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Release elements (1) must not be damaged.

Ensure correct guiding (2).

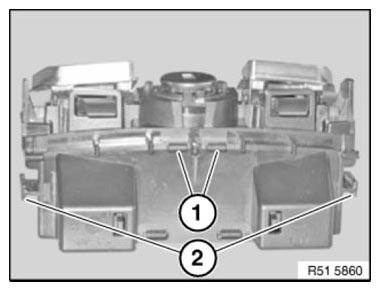

Fig 2: Identifying Guiding And Elements

Courtesy of BMW OF NORTH AMERICA, INC.
