51 16 225 Removing and installing/replacing decorative trim on center console on left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SIDE TRIM PANEL ON CENTRE CONSOLE

Release screws (1) on left and right sides.

Pull out rear center console trim (2) in direction of arrow.

IMPORTANT: Do not disconnect plug connections behind.

Fig 1: Removing Rear Centre Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Slide decorative trim on center console in direction of arrow and remove from center console (2).

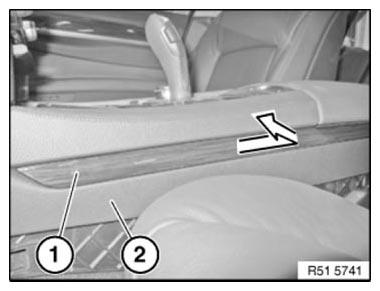

Fig 2: Sliding Decorative Trim On Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.
