51 16 216 Removing and installing (replacing) storage compartment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM ON REAR CENTRE CONSOLE

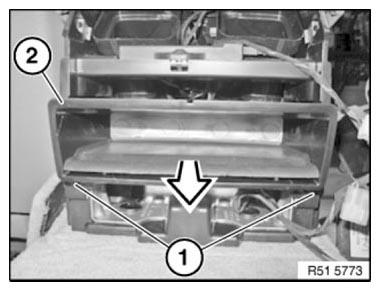

Release screws (1).
Remove storage compartment (2) in direction of arrow.
