51 16 202 Removing and installing/replacing front cup holder

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE CONSOLE TRIM

Release screws (1).

Remove front cup holder (2) from center console (3).

Installation:

Make sure front cup holder (2) is correctly seated.

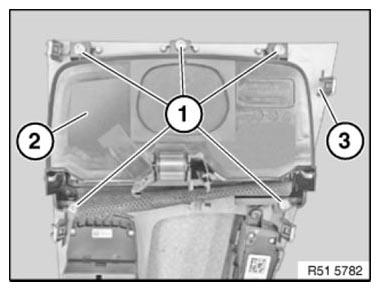

Fig 1: Identifying Front Cup Holder, Centre Console And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
