51 16 160 Removing and installing/replacing center console trim
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Risk of damage!
Carry out the following operation carefully so as to avoid damage.
Tape off center console trim in work area.
Carry out the following operation carefully so as to avoid damage.
Tape off center console trim in work area.

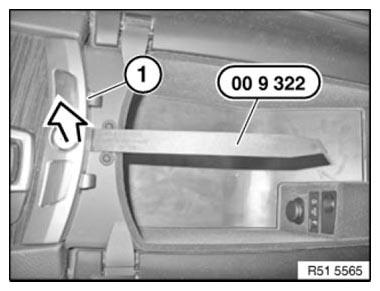

Carefully lever front center armrest trim (1) with special tool 00 9 322 out of center console and remove.
Release screws (1).
IMPORTANT:
First tighten screws hand-tight.
Tightening torque 51 16 9AZ .

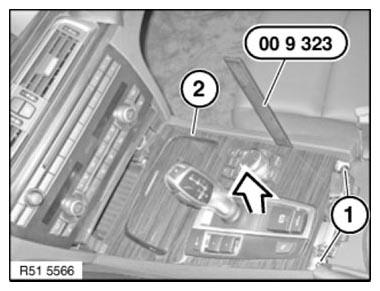

Carefully lever out center console trim (2) with special tool 00 9 323 .
Disconnect plug connections underneath.
Remove center console trim (2) in direction of arrow.
Installation:

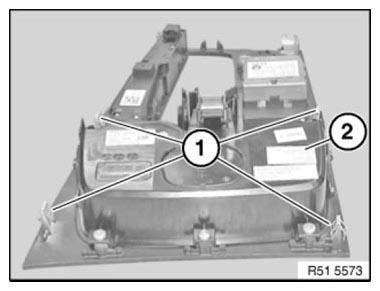

If necessary, replace retainers (1).
Make sure center console trim (2) is correctly seated.
Replacement:
- Remove CENTRE CONSOLE OPERATING UNIT
- Remove FRONT CONTROLLER .
