51 16 150 Removing and installing (replacing) front storage tray (ashtray)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove CENTRE CONSOLE TRIM
NOTE:
- Partially remove middle instrument panel decorative trim.
- Remove ashtray insert.

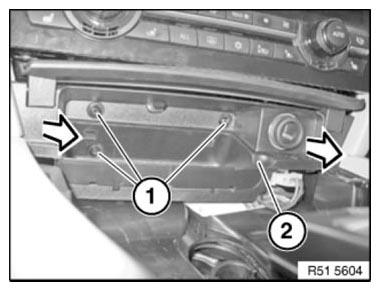

Release screws (1).
Remove front storage tray (2) in direction of arrow.
Replacement:
Transfer 12-V CHARGING SOCKET (CIGARETTE LIGHTER) IN STORAGE COMPARTMENT
