51 23 220 Removing and installing/replacing Bowden cable for engine compartment lid at rear

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!
Only perform work after engine has cooled down.

Necessary preliminary tasks:

Remove SIDE TRIM PANEL FROM FOOTWELL A-PILLAR
Remove SIDE ENGINE COMPARTMENT LID SEAL MOUNTING

Unclip clutch housing Bowden cable (1) at marked points.

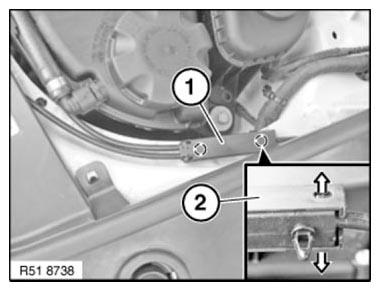

Fig 1: Disconnecting Clutch Housing Bowden Cable

G08471932

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out clutch housing cover (3) in direction of arrow and fold back.

Feed rear Bowden cable (2) out of sliding block (1) and clutch housing (3).

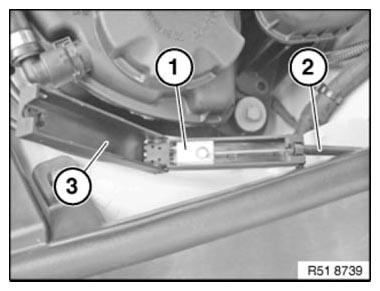

Fig 2: Identifying Clutch Housing, Cover And Rear Bowden Cable

G08471933

Courtesy of BMW OF NORTH AMERICA, INC.

Footwell area, driver's side:

Lever Bowden cable (1) out of actuator for unlocking engine compartment lid (2).

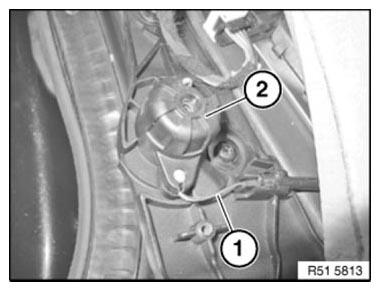

Fig 3: Identifying Bowden Cable And Engine Compartment Lid

G08471934

Courtesy of BMW OF NORTH AMERICA, INC.

Pull Bowden cable (1) out of bulkhead penetration (2).

Installation:

Make sure Bowden cable (1) is correctly laid.

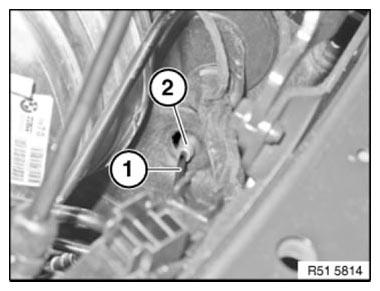

Fig 4: Identifying Bowden Cable And Bulkhead Penetration
